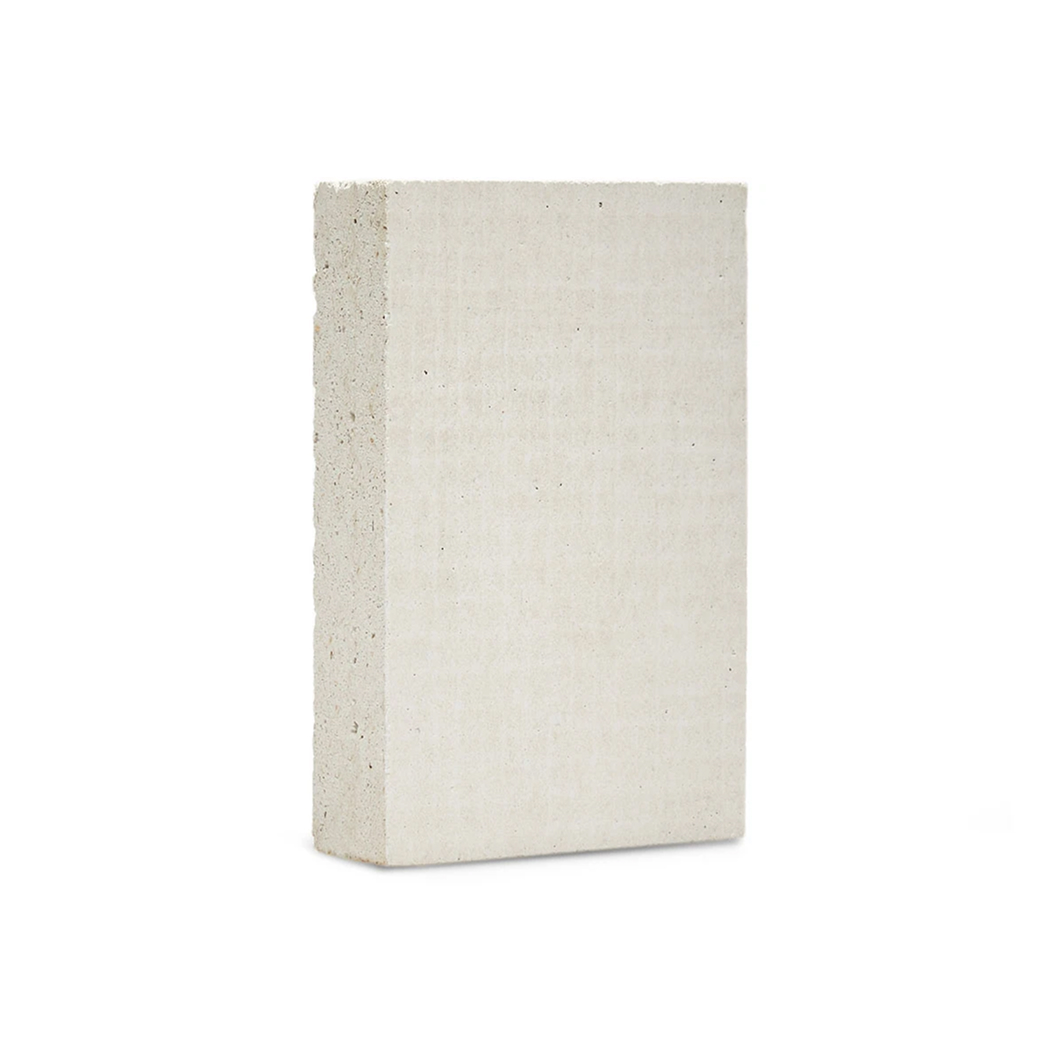

Fire Protection Board, Magnesium (MgO)

Mcr TECBOR

  • Fire-resistant magnesium board
    mcr Tecbor is a non-combustible magnesium fire protection board with a wide range of applications in general and industrial construction.
  • Practical format
    Board dimensions: 1220 × 2300 mm

Do you need such a solution?

Request a quote
Mcr TECBOR

Fire-resistant magnesium board

mcr Tecbor is a non-combustible magnesium fire protection board, widely used in general and industrial construction. Available in a practical format of 1220 × 2300 mm.

Book a free consultation

Application

Construction and installation uses

  • Encasement of steel and reinforced concrete structures,
  • Cable tray enclosures,
  • Construction of ventilation and smoke extraction ducts,
  • Non-load-bearing partition walls,
  • Masonry wall cladding,
  • Suspended ceilings,
  • Curtain walls and spandrel panels,
  • Fire protection of tunnel structures.

Characteristics

  • High fire resistance, non-combustibility
  • Good thermal insulation
  • Quick and easy installation
  • Mechanical strength
  • Free from harmful substances
  • Resistant to fungi, insects, and rodents

Technical specification

Available thicknesses
5 mm, 10 mm, 12 mm, 15 mm, 20 mm, 23 mm, 24 mm, 25mm, 30 mm, 40 mm
Size
2300 x 1220 mm
Appearance
Smooth, light-colored surface
Density
900 ± 10% kg/m3
Compressive strength
9.61 MPa
Tensile strength perpendicular to plane:
1.47 MPa
Elastic modulus
475 MPa
Flexural strength
4.74 MPa
Dimensional stability
≤0.25%
Thermal conductivity
0.31 W/(m·K)
Reaction to fire class
A1
Service category
Z2
