Firestop Wrap in Roll

Mcr PS 25

Applications as Coating
For creating protective layers.
Applications as Filler
As a jointing or gap-filling material in service penetrations.
Fire Protection
Provides sealing of mixed penetrations for combustible pipes, insulated metallic pipes, and single cables or cable bundles passing through walls and floors.

Do you need such a solution?

mcr PS-25 Intumescent Wraps

mcr PS-25 firestop wraps are made from flexible intumescent thermoplastic strips. When exposed to temperatures above 140°C, the material expands and seals the opening left by the burned-out installation.

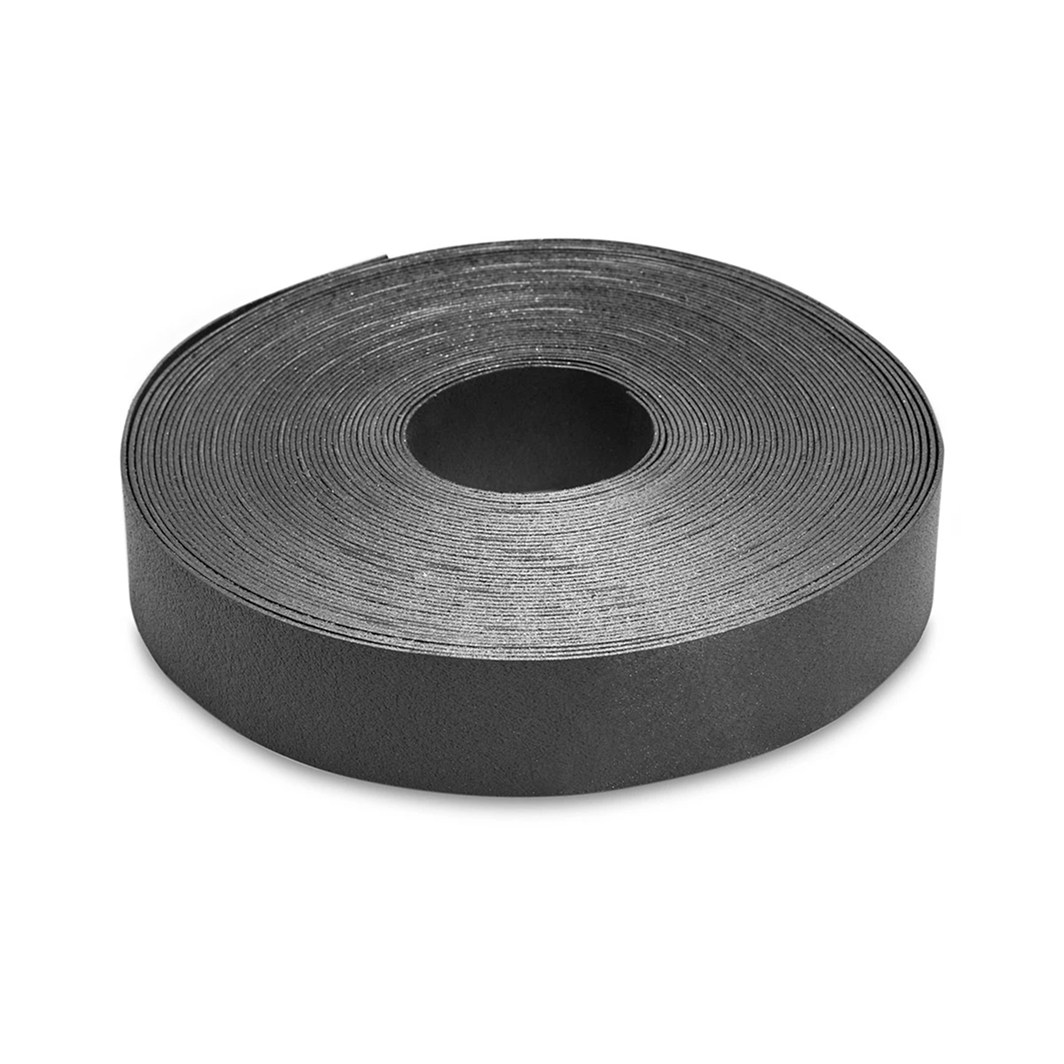

The wrap is supplied as a 30 m roll of intumescent material for on-site preparation to the required pipe diameter.

Book a free consultation

Application

Fire-resistant sealing of penetrations through walls and floors

Fire-resistant sealing of penetrations through walls and floors

Combustible pipes up to Ø 250 mm (PVC-U, PVC-C, PE-HD, PE, ABS, SAN+PVC, PP-R)

Non-combustible pipes (copper up to Ø 42 mm, steel up to Ø 100 mm) with combustible insulation in combined penetrations

Characteristics

Classified EI 120 when installed in rigid walls ≥ 100 mm thick, made of reinforced concrete, aerated concrete, solid brick, hollow or perforated brick, with a density ≥ 600 kg/m³.

The same EI 120 fire resistance is achieved when installed in rigid floors ≥ 150 mm thick, made of reinforced concrete or aerated concrete, with a density ≥ 600 kg/m³.
